Description

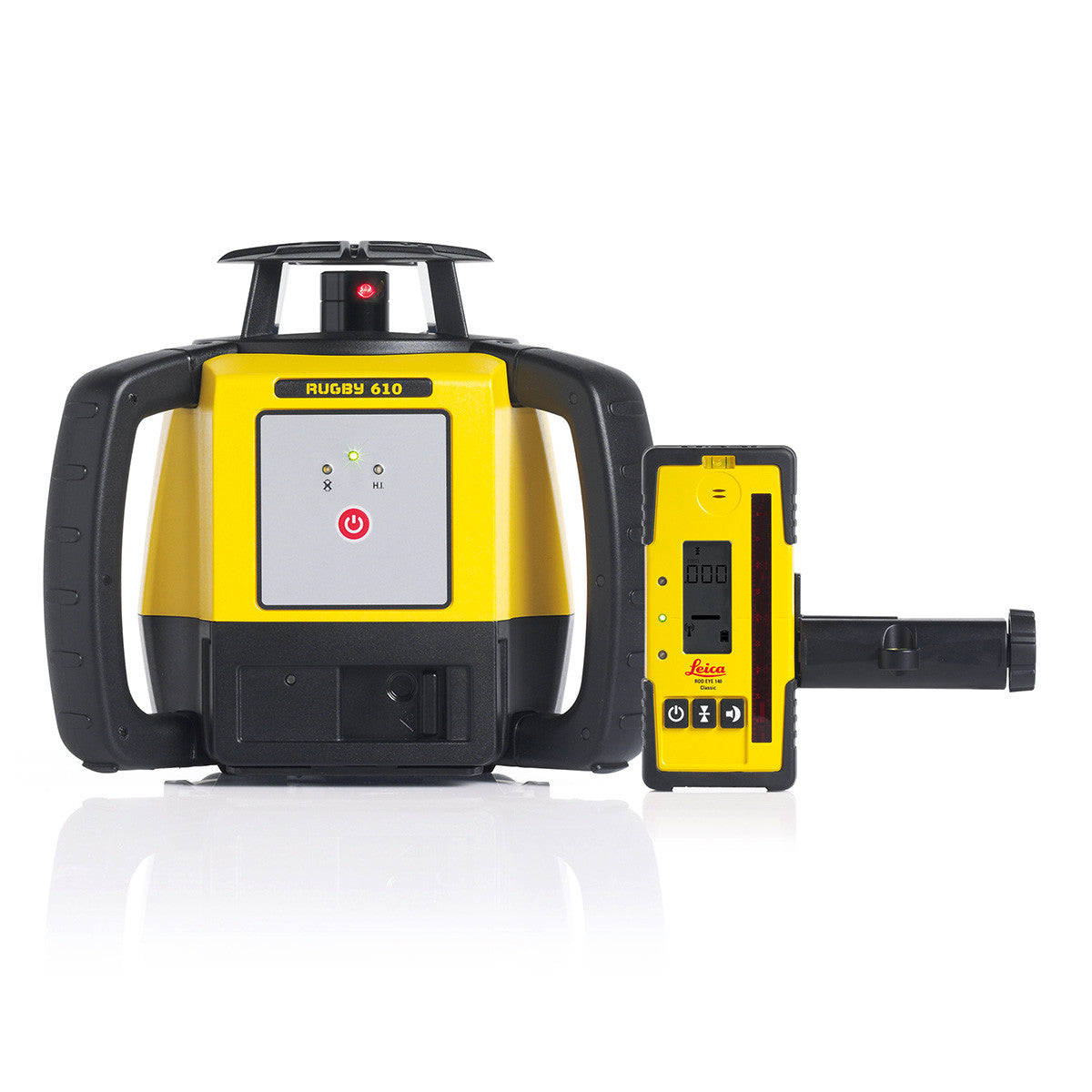

The Leica Rugby 610 laser level is an easy-to-use, no mistakes possible construction laser level.
It is fit, fast and extremely tough, making it the perfect partner for all construction work.
It is a high-quality construction laser level capable of leveling, aligning, squaring and much more besides.
This quality piece of equipment will help to eliminate costly errors and downtime on-site.
Features - Leica Rugby 610
- One-button simplicity
- Simple & reliable
- Superb performance with all Leica Rod Eye receivers. Extend your working range using the Rod Eye 140 Classic or the Rod Eye 160 Digital
- The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
- The laser beam can be detected by means of a laser detector.
- Remote control of product.
- Data communication with external appliances
Box Contents
- Rugby 610 and Carrying Case
- Rod Eye 160 Receiver
- Leica A600 Li-ion
- Leica A100 AC Charger
- Carry Case
- User Manual
- Calibration Certificate - 1 Year
The Leica Rugby 600 Range Comparison Table
Rugby 610 | Rugby 620 | Rugby 640 | Rugby 670 | Rugby 680 | |
Dimensions | 212 × 239 × 192 mm | ||||
Weight | 2.38 kg / 5.2 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs |
Functionality | Self-levelling horizontal, one button laser |
Self-levelling horizontal & manual slope in one axis |
Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
Self-levelling horizontal, dial in grade in single axis |
Self-levelling horizontal, dial in grade in dual axis |
Product type | General construction | General construction | Multipurpose / H.V. | Semi-auto grade | Semi-auto grade |
Laser class | Class 2 | ||||
Laser type | 635 nm (visible) | ||||
Plumb up | - | - | Yes | - | - |
Measured at 20°C (horizontal / vertical) |
± 2.2 mm at 30 m (3/32" at 100 ft) |
± 1.5 mm at 30 m (1/16" at 100 ft) | |||
Grade range | - | - | - | ± 8% SG | ± 8% DG |
Smart Slope | - | - | - | Yes | Yes |
Rotation – RPS | 10 | 10 | 0, 2, 5, 10 | 10 | 10 |
Scanning – degrees | - | - | 10, 45, 90 | - | - |
Scan90 | - | - | Yes | - | - |
Beam down | - | - | Yes | - | - |
Sleep mode | - | - | Yes | - | - |
Range (diameter) – Basic | 500 m (1.650 ft) | 600 m (2.000 ft) | 500 m (1.650 ft) | 600 m (2.000 ft) | 600 m (2.000 ft) |
Range (diameter) – RE140/160 | 600 m (2.000 ft) | 800 m (2.600 ft) | 600 m (2.000 ft) | 800 m (2.600 ft) | 800 m (2.600 ft) |
RF remote control (diameter) | - | - | 200 m (650 ft) | - | - |
Li-Ion batt. / hours operation | 40+ | 40+ | 40+ | 40+ | 40+ |
Alkaline batt. / hours operation | 60+ | 60+ | 60+ | 60+ | 60+ |
Working temperature range | –10 to +50 °C (14 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
Storage temperature range | –20 to +70 °C (–4 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
Seal (both excluding and including battery pack) |
IP67 | IP67 | IP67 | IP67 | IP67 |
Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) |
