LaserLiner ThermoCamera Compact
£1,199.99 with VAT
£0.00 with VAT /
LaserLiner ThermoCamera Compact - ThermoCamera Compact is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Available To Hire
Available To Hire
The vast majority of our products are also available to hire.
Hiring comes with a number of benefits including:
- Easy access to the latest technology
- Reduced costs
- Short or long-term contracts
- Fast delivery and collection
Free UK Delivery *
Free UK Delivery *
We offer free delivery throughout the UK on all orders over £350.
Key information:
- We deliver to the UK Mainland only (i.e. England, Scotland & Wales).
- We will normally send your order to you the next working day for stock items.
- We dispatch orders Monday to Friday (excluding UK public holidays).
Price Match Promise
Price Match Promise
Our Price Match Promise is that, should you find any item cheaper elsewhere, we will aim to match or beat that price.
Finance Options Available
Finance Options Available
Subject to status, we are now able to offer Hire Purchase and Finance Lease on a whole range of equipment.
LaserLiner ThermoCamera Compact
£1,199.99 with VAT
£0.00 with VAT /

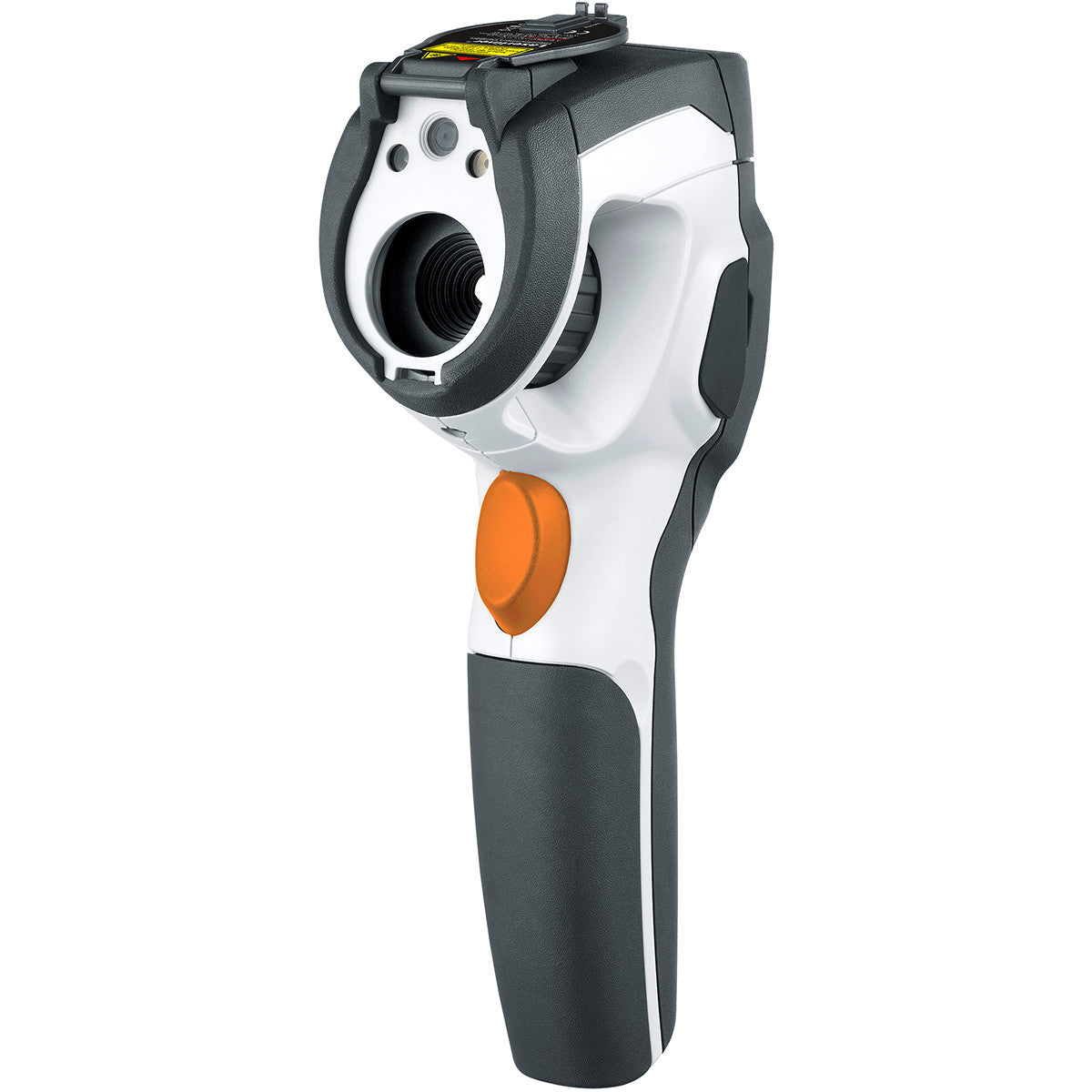

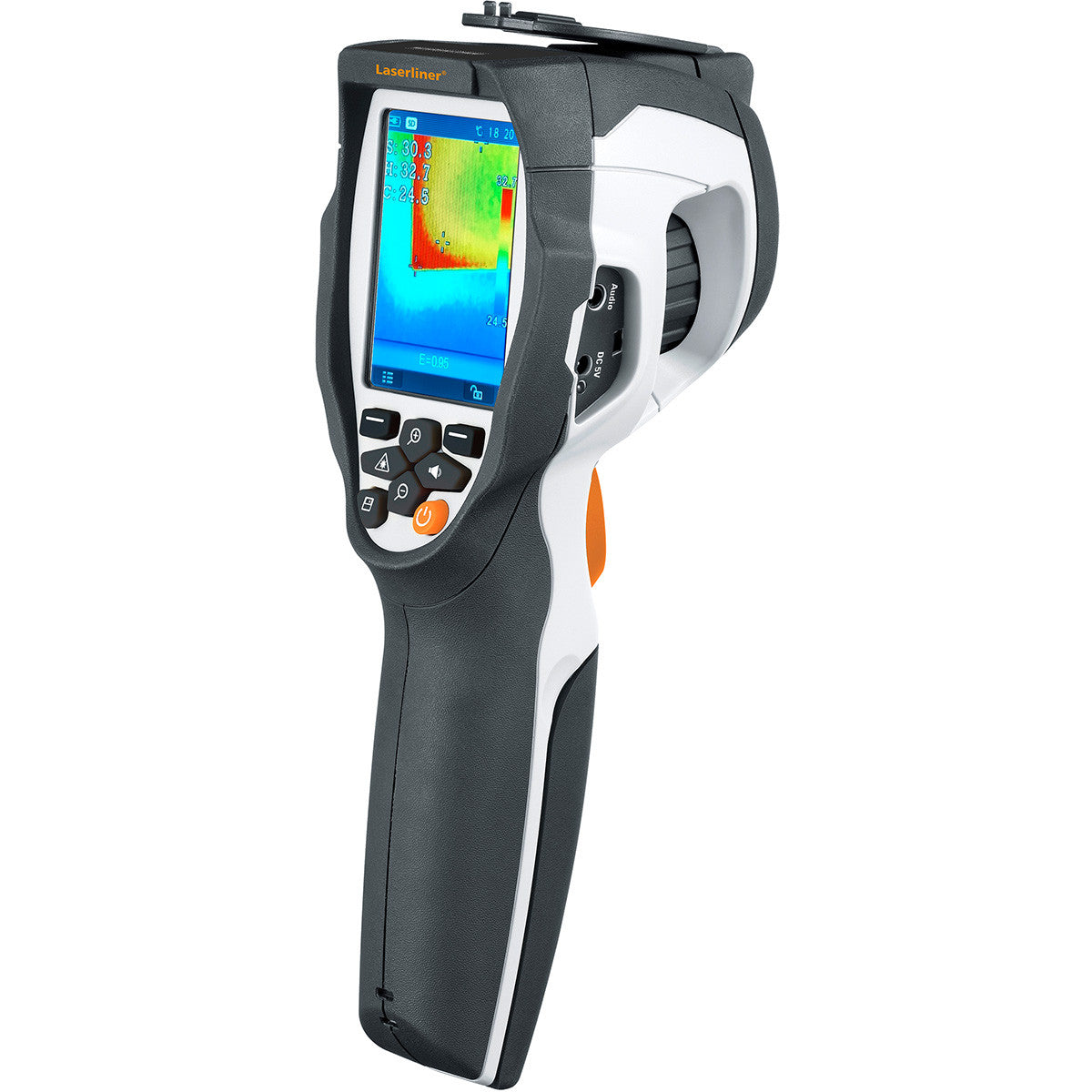

The LaserLiner ThermoCamera Compact is a handheld thermal imaging camera.
It can be used for applications in construction, electrical engineering and mechanical engineering.
Package includes: -
- ThermoCamera Compact
- Li-ion Battery
- USB Cable
- Video Cable
- 8GB Micro SD
Features - LaserLiner ThermoCamera Compact
- High-resolution 2.8″ colour display for reliable evaluation and analysis of temperature conditions
- Infrarod sensor with 80 x 80 pixel resolution and focusable infrared lens for detailed and varied image analysis
- Large measuring range from -20 °C to 350 °C, adjustable emissivity range from 0.01 to 1.0 or selection from material table
- Analysis in various image modes:
- Full screen: Infrared image, camera
- Picture-in-picture: Infrared/visual image
- Dual-image: Infrared/camera crossfade
- Selectable standard colour pallets: IRON, IRON-INV, RAINBOW, GREY, GREY-INV
- Central measuring point for temperature analysis and additional automatic hot/cold spot marking
- Measured value correction for ambient and reflected temperature for easy compensation of error effects
- Built-in USB 2.0 PC interface for smooth data exchange and additional PC camera function
- Simple and easy to operate thanks to easy-to-access menu buttons
| IR-SENSOR | 80 x 80 measuring points, 25 fps uncooled microbolometer, 8-14μm |
| IR OPTICS | Germanium interchangeable lens 17° x 17° (FOV) 3,78 mrad (IFOV) adjustable focus 0,5 m - 5 m |
| THERMAL SENSITIVITY | NETD, 0,1°C |
| ACCURACY | ± 2°C or ± 2% of measured value |
| MEASUREMENT RANGE | –20°C...+150°C LO - RANGE 0°C...+350°C HI - RANGE |
| DISPLAY | 2.8" colour TFT |
| IMAGE MODES | Infrared, VIS, Picture-in-picture |
| IMAGE FUNCTION | 1-32x digital zoom |
| FORMAT | MPEG-4 standard, max. 1280 x 960 Pixel, 30fps > 60 min. on memory card |
| MEMORY FUNCTION | Micro-SD-Card - up to 16 GB |
| LED | White LED, object lighting |
| TARGET LASER | Laser classe 2 < 1 mW |
| MENU | Choice of 9 languages |
| PORTS | USB, micro-SD, video (HDMI), audio, microphone/headphone |
| PROTECTION CLASS | IP65, drop test 2 m, impact 25 g (IEC60068-2-29), vibration 2 g (IEC60068-2-6) |
| OPERATING TEMPERATURE | -20°C … 50°C |
| STORAGE TEMPERATURE | -40°C … 70°C |
| RELATIVE HUMIDITY | 10%rH … 90%rH, no condensation |
| POWER SUPPLY / CHARGING TIME / OPERATING TIME | Li-Ion pack battery 3.7V/2,6Ah / approx. 4 h / charg. electronic system, DC 5V |
| DIMENSIONS | 97 mm x 77 mm x 244 mm |
| WEIGHT (incl. batteries) | 0,500 kg |
