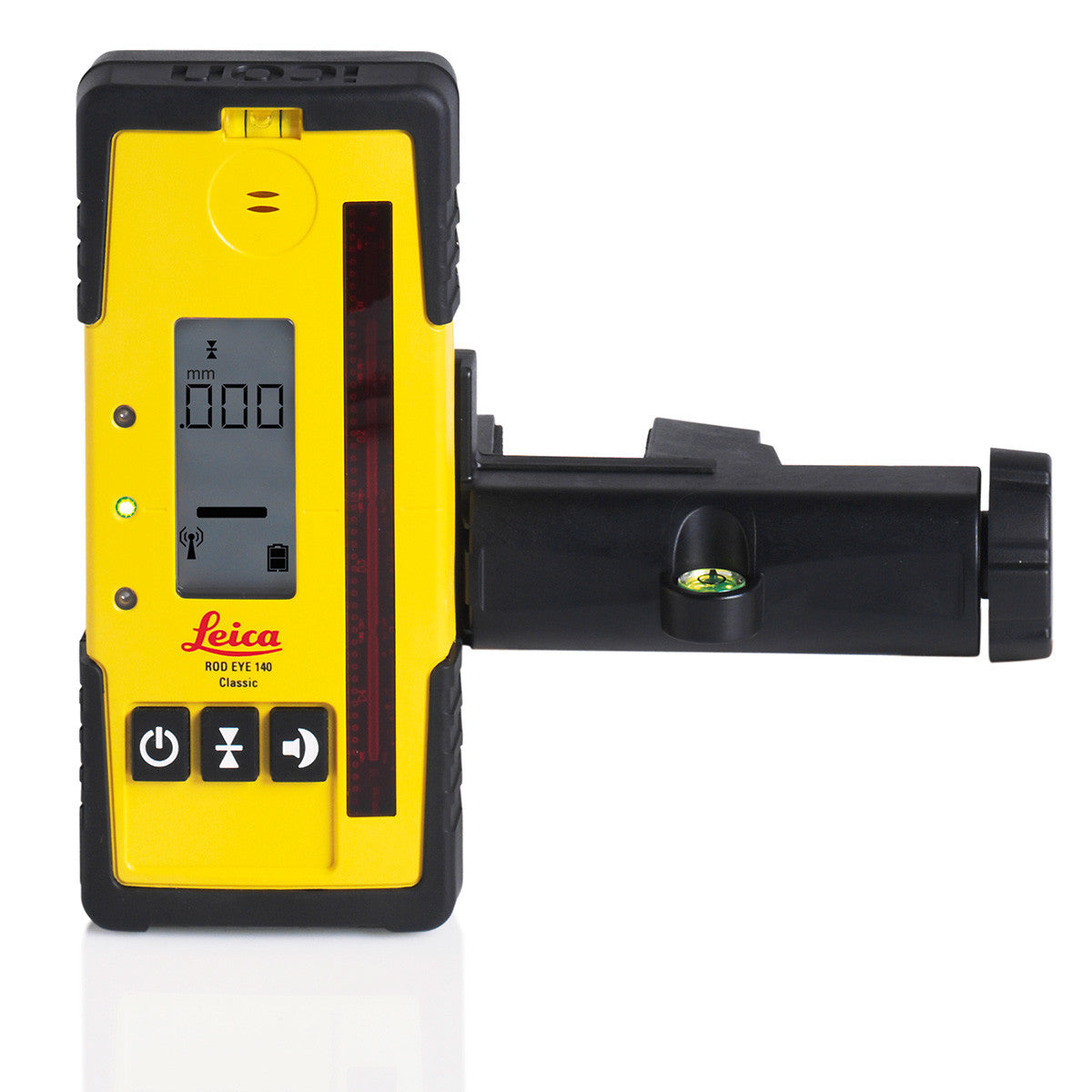

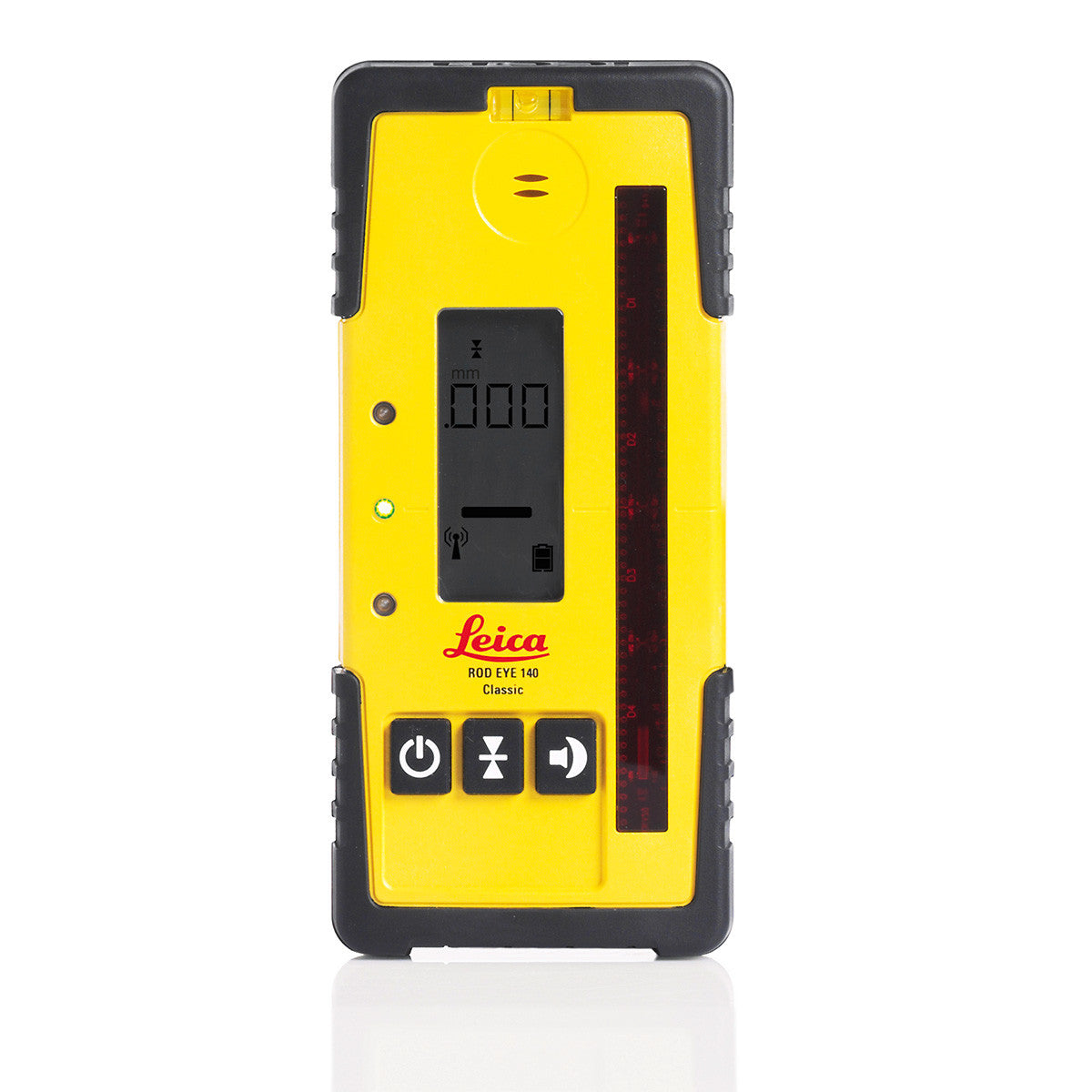

Leica Rod Eye 140 Classic Receiver
£228.00 with VAT
£0.00 with VAT /
Classic laser receiver, High application performance and strobe rejection.
| Working diameter (laser dependent): | 1350 m / 4430 ft |
| Detection height: | 120 mm / 5 in |
| Detectable spectrum: | 600 nm to 800 nm |
Detectable accuracies
| Fine: | ± 1.0 mm / ± 0.04 in |
| Medium: | ± 2.0 mm / ± 0.08 in |
| Coarse: | ± 3.0 mm / ± 0.12 in |
| Audio volumes: | 105 dBA / 65dBA / Off |
| Automatic shut off: | 10 minutes |
| Arrow display: | 11 channels |
| Anti-strobe protection: | Yes |
| Memory, last beam strike: | Yes |
| Beam finding (double beep): | Yes |
| Laser low battery indicator: | Yes |
| Warranty: | Three years |
| Environmental: | IP67 |
| Batteries: | 50+ hours (2 x 1.5 V "AA" ) |
| Dimensions: | 173 x 76 x 29 mm / 6.8 x 3.0 x 1.1 in |
| Operating temperature: | -20°C to +50°C / -4°F to +122°F |
| Storage temperature (except batteries): | -40°C to +70°C / -40°F to +158°F |
| LCD Indication | Two, large graphic displays on the front and back of the receiver. |
| LED Indication | Three bright LED’s can be used as a ready reference for the receiver position. |
| Menu Function | Additional options are available to set your functional preferences. |
| Level Vial | Ensures good alignment and improves your reading accuracy. |
| Exceptional Reception | The extra long reception window includes the unique technology that provides the accurate digital input. |
| Audio Indication | Three audio settings. Up to 110 decibels for noisy jobs. |
| Versatile Rod Bracket | A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb. |
| Protective Overmold | Protects the receiver from drops in tough jobsite conditions. |
Special Features
| Anti-strobe Protecton | Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function. |
| Beam Finding | Passing the receiver through the laser beam will cause the receiver to beep twice quickly. |
| Out of Beam Display | If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam. |
| Laser Low Battery | A small laser icon on the receiver display alerts the user when the batteries are getting low. |
Package includes: -
- 1 x Leica Rod Eye Basic Receiver
- 1 x Bracket
|
|
||||
|
Technical data |
||||
|
Working diameter |
600m (2000 ft) | 1.350m (4430 ft) | 1.350m (4430 ft) | 1.350m (4430 ft) |
|
Extended detection window |
36mm / 1.4in | 120mm / 5in | 120mm / 5in | 120mm / 5in |
|
Numeric readout height |
- | - | 90 mm / 3.5 in | 90 mm / 3.5 in |
|
Detectable spectrum |
600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm | 600 nm to 800 nm |
|
Detection Accuracies |
||||
|
Very fine |
- | - | ± 0.5 mm / ± 0.02 in | ± 0.5 mm / ± 0.02 in |
|
Fine |
± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in | ± 1.0 mm / ± 0.04 in |
|
Medium |
- | ± 2.0 mm / ± 0.08 in | ± 2.0 mm / ± 0.08 in | ± 2.0 mm / ± 0.08 in |
|
Coarse |
± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in | ± 3.0 mm / ± 0.12 in |
|
Very coarse |
- | - | ± 5.0 mm / ± 0.20 in | ± 5.0 mm / ± 0.20 in |
