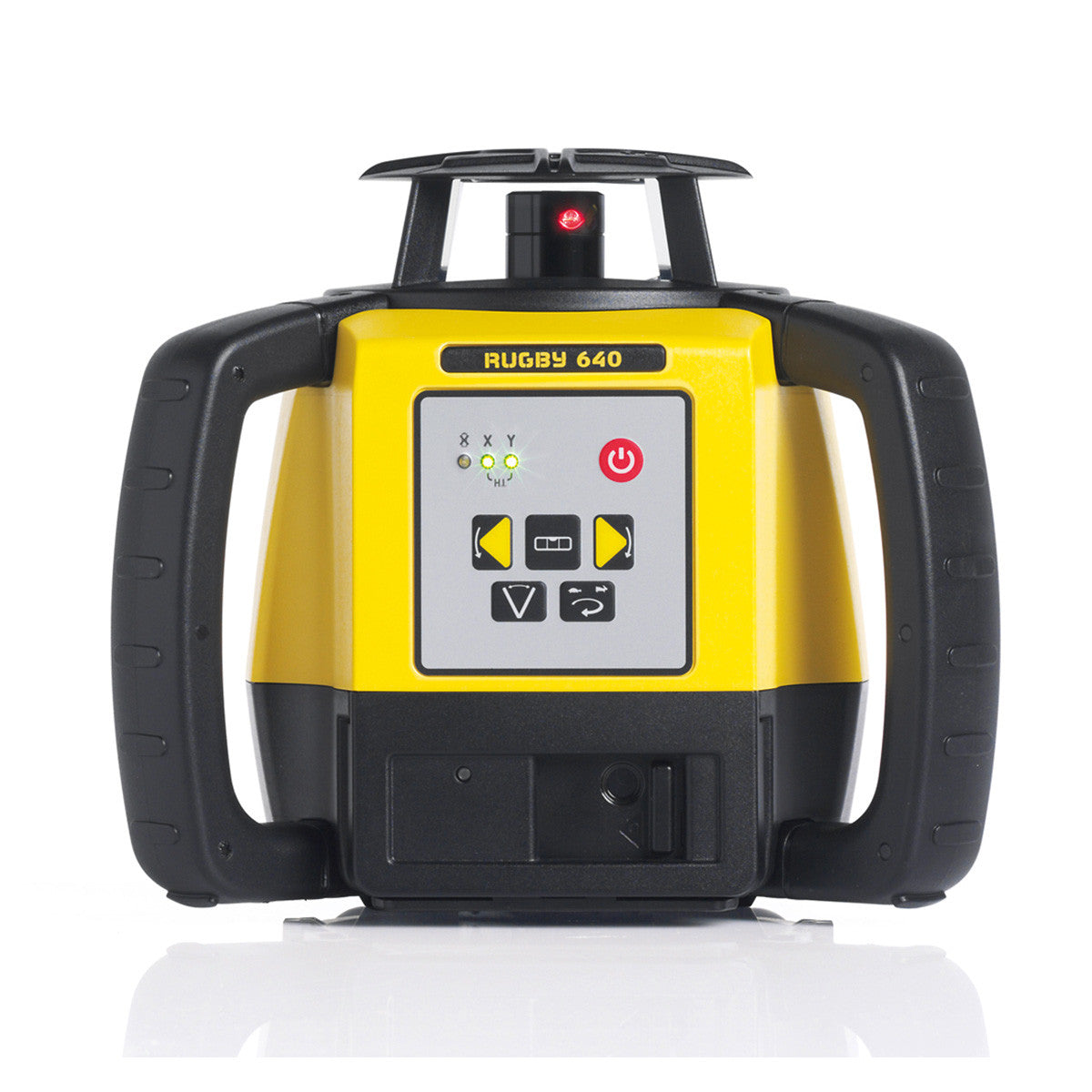

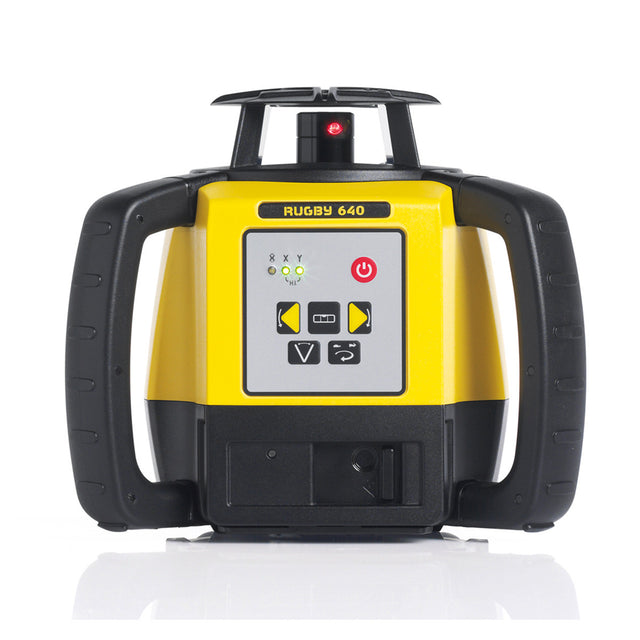

Leica Rugby 640 Laser Level
The Leica Rugby 640 laser level is a multi-purpose instrument capable of vertical, horizontal, manual and 90° slope in dual axis.
It comes with some fantastic additional features including Scan 90, Sleep Mode and Plumb Down.
The Scan 90 feature speeds up layout tasks, Sleep Mode conserves power without losing data and Plumb Down functions automatically.
It is also protected to IP67 for dust and water. A resilient and reliable instrument!
Features - Leica Rugby 640
- Fit for any interior and exterior leveling, aligning and squaring application
- Scan 90 – make layout easier by quickly moving the beam to the left or right side
- Plumb Down – automatic and accurate plum down direction for alignment over a reference point
- Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up
- Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 140 Classic and the Rod Eye 160 Digital
- The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
- The laser beam can be detected by means of a laser detector.
- Remote control of product.
- Data communication with external appliances.
Box Contents
- Rugby 620 Laser Level
- Leica Rod Eye 160 Digital Receiver
- Leica A600 Li-ion Battery
- Leica A100 AC Charger
- Carrying Case
- User Manual
- Calibration Certificate - 1 Year
The Leica Rugby 600 Range Comparison Table
| Rugby 610 | Rugby 620 | Rugby 640 | Rugby 670 | Rugby 680 | |
| Dimensions | 212 × 239 × 192 mm | ||||
| Weight | 2.38 kg / 5.2 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs | 2.56 kg / 5.6 lbs |
| Functionality | Self-levelling horizontal, one button laser |
Self-levelling horizontal & manual slope in one axis |
Self-levelling horizontal, vertical, 90° and manual slope in dual axis |
Self-levelling horizontal, dial in grade in single axis |
Self-levelling horizontal, dial in grade in dual axis |
| Product type | General construction | General construction | Multipurpose / H.V. | Semi-auto grade | Semi-auto grade |
| Laser class | Class 2 | ||||
| Laser type | 635 nm (visible) | ||||
| Plumb up | - | - | Yes | - | - |
|
Measured at 20°C (horizontal / vertical) |
± 2.2 mm at 30 m (3/32" at 100 ft) |
± 1.5 mm at 30 m (1/16" at 100 ft) | |||
| Grade range | - | - | - | ± 8% SG | ± 8% DG |
| Smart Slope | - | - | - | Yes | Yes |
| Rotation – RPS | 10 | 10 | 0, 2, 5, 10 | 10 | 10 |
| Scanning – degrees | - | - | 10, 45, 90 | - | - |
| Scan90 | - | - | Yes | - | - |
| Beam down | - | - | Yes | - | - |
| Sleep mode | - | - | Yes | - | - |
| Range (diameter) – Basic | 500 m (1.650 ft) | 600 m (2.000 ft) | 500 m (1.650 ft) | 600 m (2.000 ft) | 600 m (2.000 ft) |
| Range (diameter) – RE140/160 | 600 m (2.000 ft) | 800 m (2.600 ft) | 600 m (2.000 ft) | 800 m (2.600 ft) | 800 m (2.600 ft) |
| RF remote control (diameter) | - | - | 200 m (650 ft) | - | - |
| Li-Ion batt. / hours operation | 40+ | 40+ | 40+ | 40+ | 40+ |
| Alkaline batt. / hours operation | 60+ | 60+ | 60+ | 60+ | 60+ |
| Working temperature range | –10 to +50 °C (14 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
–20 to +50 °C (–4 to +122 °F) |
| Storage temperature range | –20 to +70 °C (–4 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
–40 to +70 °C (–40 to +158 °F) |
|
Seal (both excluding and including battery pack) |
IP67 | IP67 | IP67 | IP67 | IP67 |
| Warranty | 3 years no cost (see PROTECT by Leica Geosystems policy for life time coverage) | ||||
Leica Rugby - The Toughest Laser Level On Site
