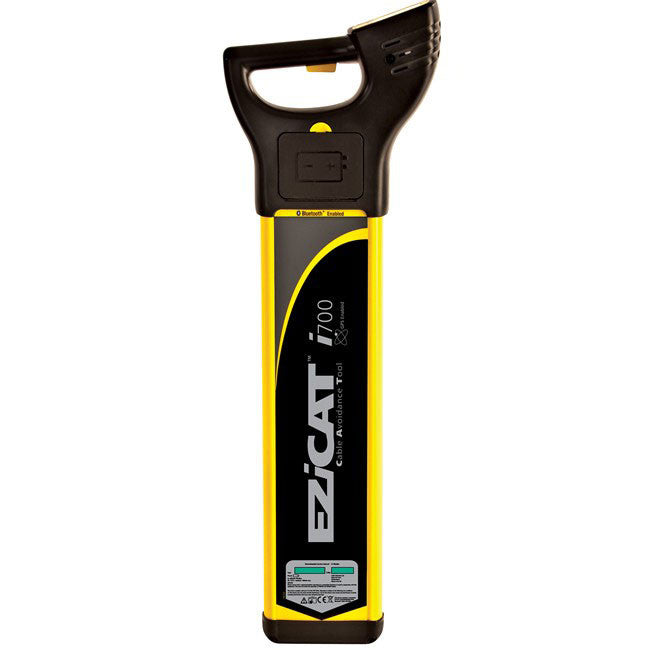

EZiCAT™ i700 Cable Locator

NOTE: This cable detector is no longer available to buy.

We recommend that you view the new Leica ULTRA and Leica DD Cable Detectors.

View New Cable Detectors »



As with all our cable locators the EZiCAT i700 is robust and easy to use.

Packed full of all the well-known, beneficial features making avoiding and locating buried utilities an easy and efficient task.

The intelligent EZiCAT i700 cable locator has fully integrated GPS technology and data logging capability, providing you with information on where, when and how the locator has been used.

This information can then be transferred via Bluetooth® to LOGiCAT software, making downloading and analysing the data quick and easy.

This data is useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

The cable locator is suitable for a wide range of applications and can be used with the EZiTEX signal transmitters and EZiSYSTEM accessories for increased accuracy and applications.

Box Contents

Package includes: -

• EZiCAT™ i700 Cable Locator
• Six AA (LR6) Batteries
• Quickstart Reference Guide
• Safety Concepts Manual
• CD‐ROM containing User Manual & Certificate of Conformity

Features	EZiCAT 700 i-Series  (i700 & i750)	EZiCAT 750xf
Frequency/ mode	Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz,  Transmitter 8 kHz and 33 kHz, Auto = Power + Radio modes	Power 50 Hz or 60 Hz, Radio 15 kHz to 60kHz,  Transmitter 8 kHz, 33 kHz, 512 Hz & 640 Hz Auto = Power + Radio modes
Depth estimation	Available on the i750 only  10% of depth in line or sonde mode  Line & sonde modes - 0.3m – 3m depth range	10% depth in line or sonde mode Line mode – 0.3m – 3m Sonde mode – 0.3m to 9.99m
Typical depth detection range	Power mode to 3m, Radio mode to 2m, Transmitter mode – dependant on transmitter or sonde type
Batteries	6 x AA alkaline (IEC LR6), supplied
Battery life	40 hours intermittent use (at 20°C)
Weight	2.7kg including batteries
Dimensions	760mm (H) x 85mm (D) x 250(W)
Protection		Conforms to IP54
Bluetooth®		Enabled
Compatibility	CSV file compatibility program
Memory size		64 MB memory
GPS type	Chipset*: u-blox®GPS, Technical Data: Type: L1 frequency, C/A code
GPS accuracy**	Position 2.5m CEP, SBAS 2.0m CEP
GPS start time	Cold 34s typical, Warm 34s typical, Hot 1s typical

Intelligence Features

The intelligent EZiCAT i700 has integrated GPS technology and data logging capability, which helps you to see where, when and how the locator has been used.

This is very useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

The EZiCAT i700 has all the well-known features you need to locate buried utilities effectively, along with the unique 'Automatic Pinpointing' feature which makes locating buried cables and pipes easy and simple.

You don't need to manually adjust the sensitivity of the locator because the intelligent locator does this for you.

Ensuring that you are using the optimum sensitivity for the environment you are locating in. To access and analyse the data collected by the locator you will also need the LOGiCAT software or you will need to integrate the EZiCAT i700 with mobile mapping technology to log the survey data.

Do you want depth estimation as well as a GPS locator? Take a look at the EZiCAT i750. It comes with all the great features and benefits of the EZiCAT i700 but with added depth estimation.

Applications

The EZiCAT i700 is ideal to use before any excavation work to avoid striking a buried utility.

This locator will increase your on-site safety, save you time, through the unique 'Automatic Pinpointing' feature, and save you money by reducing cable strikes.

You can use the locator to detect a number of different cables or pipes:

• Electricity cables
• Data / telecomms cables
• Conductive pipes (including; steel, cast iron etc.)
• Non-conductive pipes or cables (including; clay, concrete etc.) when used in conjunction with Cable Detection's accessories and/or EZiTEX signal transmitters to detect them.

Intelligence Features

The intelligent EZiCAT i700 has integrated GPS technology and data logging capability, which helps you to see where, when and how the locator has been used.

This is very useful to help identify training needs of users and for traceability of locating following a near miss, utility strike or similar incident.

The EZiCAT i700 has all the well-known features you need to locate buried utilities effectively, along with the unique 'Automatic Pinpointing' feature which makes locating buried cables and pipes easy and simple.

You don't need to manually adjust the sensitivity of the locator because the intelligent locator does this for you.

Ensuring that you are using the optimum sensitivity for the environment you are locating in. To access and analyse the data collected by the locator you will also need the LOGiCAT software or you will need to integrate the EZiCAT i700 with mobile mapping technology to log the survey data.

Do you want depth estimation as well as a GPS locator? Take a look at the EZiCAT i750. It comes with all the great features and benefits of the EZiCAT i700 but with added depth estimation.

Downloads

Cable Detection EZiCAT™ 700 Series Tech Data
