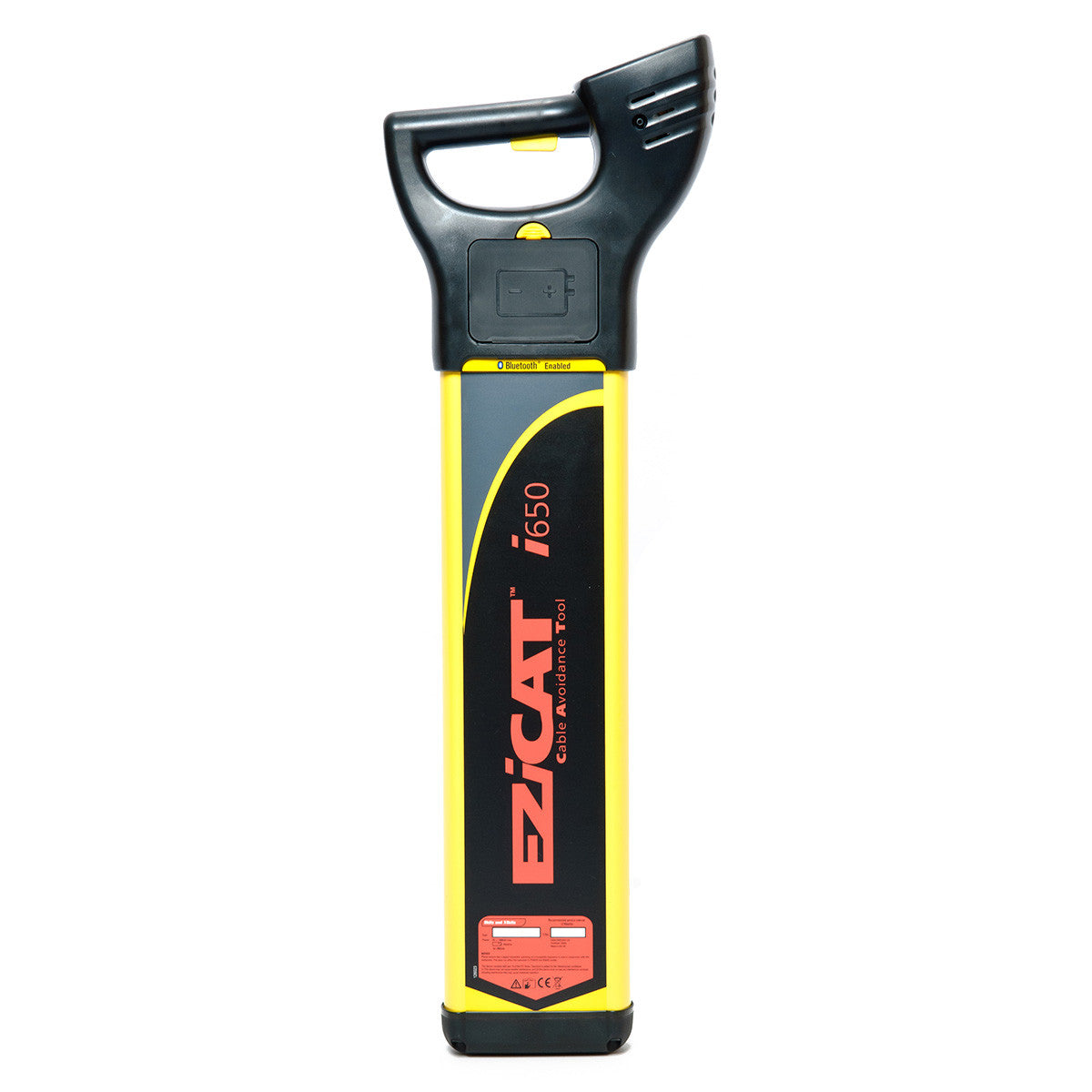

EZiCAT™ i650 Cable Locator
£0.00 with VAT
£0.00 with VAT /
NOTE: This cable detector is no longer available to buy.
We recommend that you view the new Leica ULTRA and Leica DD Cable Detectors.
The new EZiCAT i650 provides a unique data capture and on board memory function, allowing verification of the locators use and the ability to recall records following a near miss, service strike or similar incident.
The EZiCAT i650 locates buried conductive services by receiving electromagnetic signals which radiate from them. The EZiCAT's intelligent software interprets the signal data and provides the operator with an audiable response to the location and direction of buried utilities. The operator can mark the ground or use a GIS mapping device to note the location.
With the unique LOGiCAT Software, records can be retrieved and collated helping to increase on site safety, whilst identifying training needs.
The EZiCAT i650 makes locating underground cables and pipes a simple and efficient task, increasing your onsite safety and ultimately saving time and money.
Buried service location has never been so easy…
Box Contents
Package includes: -
- EZiCAT™ i650 Cable Locator
- Six AA (LR6) Batteries
- Quickstart Reference Guide
- Safety Concepts Manual
- CD‐ROM containing User Manual & Certificate of Conformity
|
Features |
EZiCAT i500 |
EZiCAT i550 |
EZiCAT i600 |
EZiCAT i650 |
|---|---|---|---|---|
|
High Contrast LCD Display |
✓ |
✓ |
✓ |
✓ |
|
Automatic Sensitivity Adjustment |
✓ |
✓ |
✓ |
✓ |
|
5 Operating Modes - including 'Auto Mode' |
✓ |
✓ |
✓ |
✓ |
|
'Hazard Zone' - Shallow Service Warning |
✓ |
✓ |
✓ |
✓ |
|
In-built User Activated Self-Test Function |
✓ |
✓ |
✓ |
✓ |
|
Peak Assist Function |
✓ |
✓ |
✓ |
✓ |
|
Bluetooth Wireless Data Transfer |
✓ |
✓ |
||
|
Always Starts in 'Power Mode' for Safety |
✓ |
✓ |
||
|
Automatic Pinpointing |
✓ |
✓ |
||
|
Service Depth Indication |
✓ |
✓ |
EZiCAT i650 New Features
Data Logging
Both the EZiCAT i600 and i650 record and store detection information whilst in use. The locators start to record information every second after completion of the initial start-up routine. These records (logs) are stored in the locator’s memory and can be retrieved and transferred via Bluetooth to a PC for analysis. The locators are capable of storing approximately 80 hours of records.
Bluetooth Wireless Connectivity
Both the EZiCAT i600 and i650 locators have the added benefit of Bluetooth wireless connectivity. It allows the EZiCAT to integrate seamlessly with mobile mapping technology to log survey data, in addition to enabling wireless Bluetooth data transfer.
Depth Indication
When using the EZiCAT in conjunction with the EZiTRACE or Sonde in 8 or 33 kHz modes, operators can determine the depth of the buried utility, providing a clear advantage when conducting ground surveys.
EZiCAT Intelligent Features
Automatic controls
Making the EZiCAT easy to use, requiring minimal user training.
Starts in Power Mode
Ensures the most potentially dangerous current carrying services are detected first for maximum operator safety.
Auto Mode
Automatically locates power or radio signals, helping to confirm the presence of services upon initial site
occupation making cable detection easier and safer!
Hazard Zone
Buried utilities close to the surface pose a significant safety risk to site works. The new Hazard Zone function
provides an additional warning to the close proximity of buried services, alerting users to the immediate danger.
Pinpoint assist
Maintains the highest peak reading obtained on the signal strength indicator for a period of time, allowing the
operator to quickly and accurately pinpoint the service position.
Signal Strength Indicator
All EZiCAT i-Series locators feature numeric signal strength readout, specifically designed for easy Sonde location and use with Signal generator.
In‐built test function.
Allowing operators to test the hardware and software functionality of the EZiCAT before use.
Service Due indicator
Wrench icon displayed after 12 months.
Highly visible digital LCD display
with built‐in light sensor, automatically enabling the backlight in dark conditions.
Robust, light weight design
EZiCAT i‐Series locators are specifically engineered for tough site conditions.
Additional Information
- Dual mode active tracing for on‐site flexibility
- Controls: On/Off, Mode select, ’i‐button’ Information select & view
- Frequencies: Power 50/60 Hz, Radio 15‐60 kHz, Generator 8 & 33 kHz
- Depth range: Power/Generator 3 metres, Radio 2 metres
- Dust and water protection to IP54
